Wavefront Analysis Technology

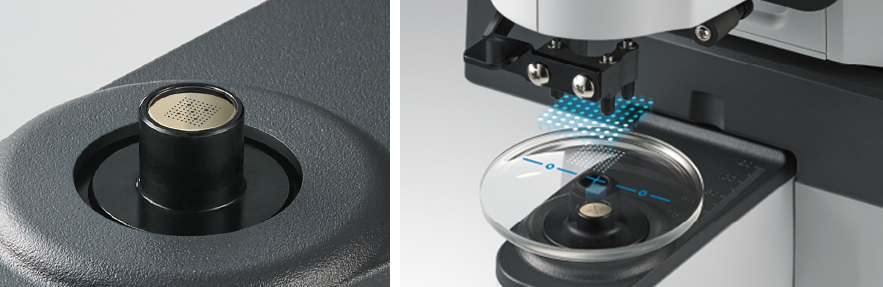

Hartmann Sensor Wavefront Analysis Technology improves measurement accuracy by utilizing more measurement points compared to previous generations, providing stable and reliable lens analysis.
Expanded Prism Measurement Range
The prism measurement range supports up to 20△ with measurement available in all directions including BU, BD, BI, and BO.
Wide Lens Measurement Range
The HLM-1 supports measurement of lens diameters ranging from 15 mm to 120 mm, making it suitable for both small and large lenses.
Easy Measurement of Sunglasses
The system automatically amplifies light when measuring dark-tinted or mirrored sunglasses, enabling accurate refractive power measurement without additional manual adjustment.
With 81 measurement points, the HLM-1 provides enhanced measurement accuracy through advanced Hartmann Sensor Wavefront Analysis Technology.
Automatic Lens Recognition
The HLM-1 automatically recognizes single vision, progressive, and other lens types, then switches to the appropriate measurement mode automatically for improved workflow efficiency.
Improved Progressive Lens Measurement
Guided on-screen indicators and moving targets simplify progressive lens measurement for faster and more convenient operation.
5.7-Inch High-Resolution IPS Display
The 5.7-inch IPS display features anti-glare and hardened protective coatings for improved visibility, durability, and comfortable operation.
